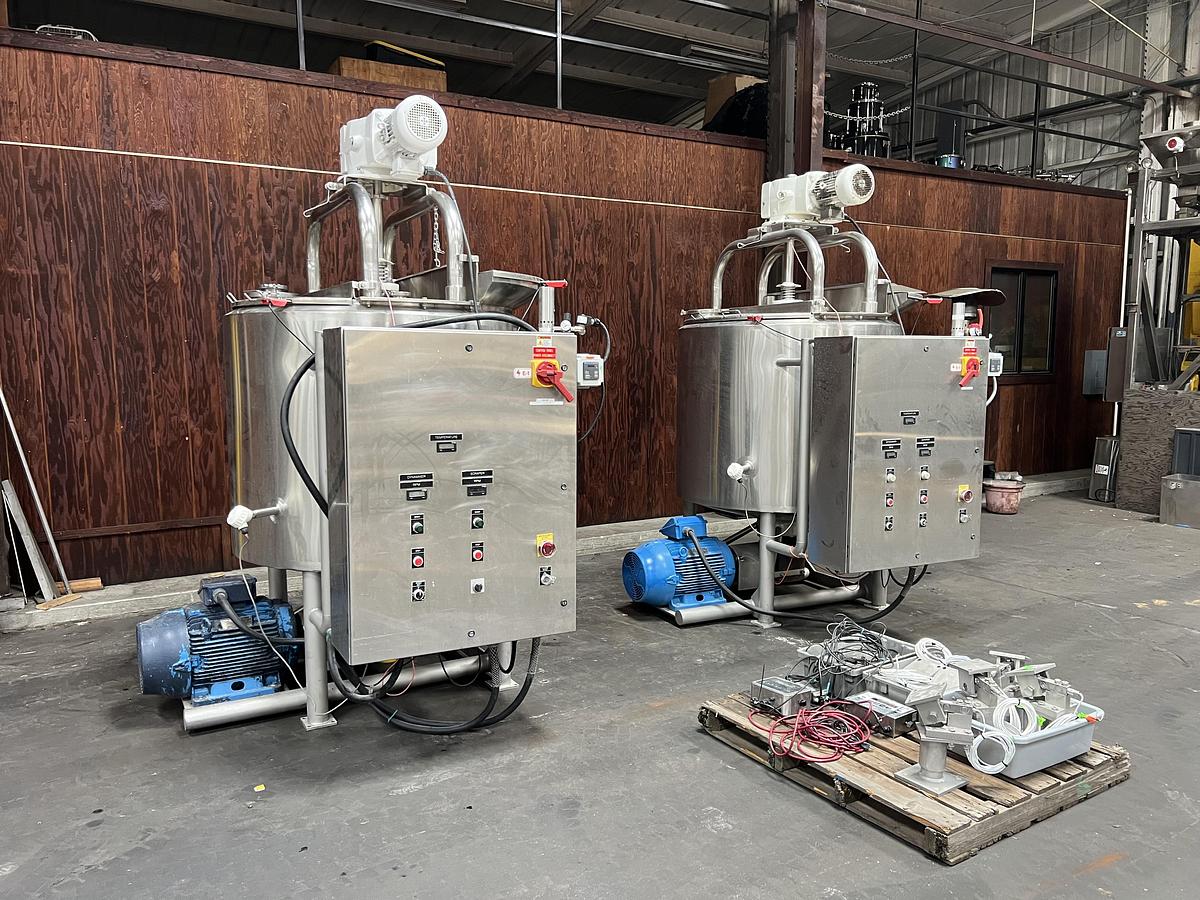

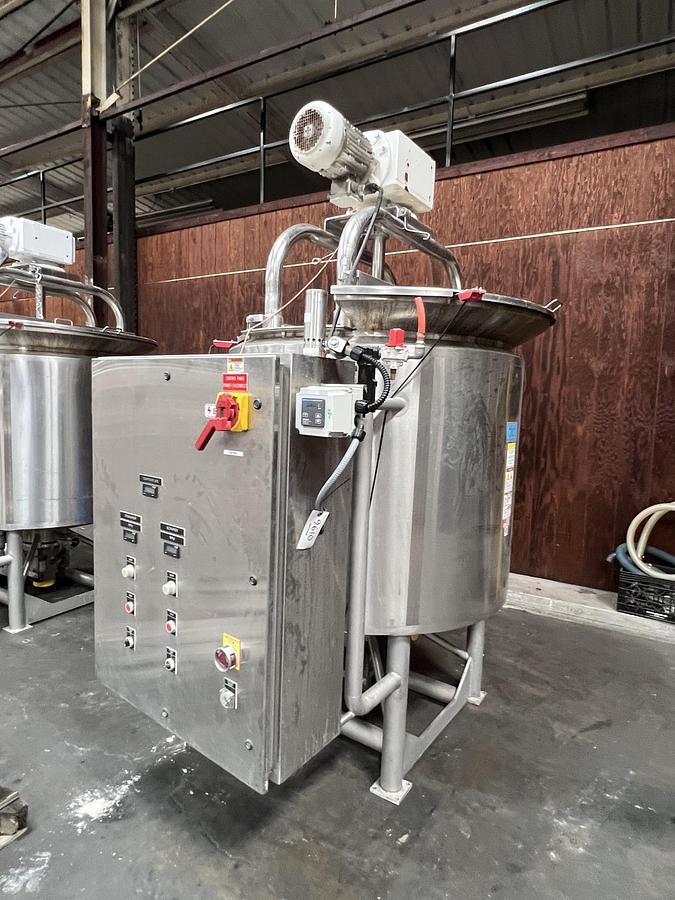

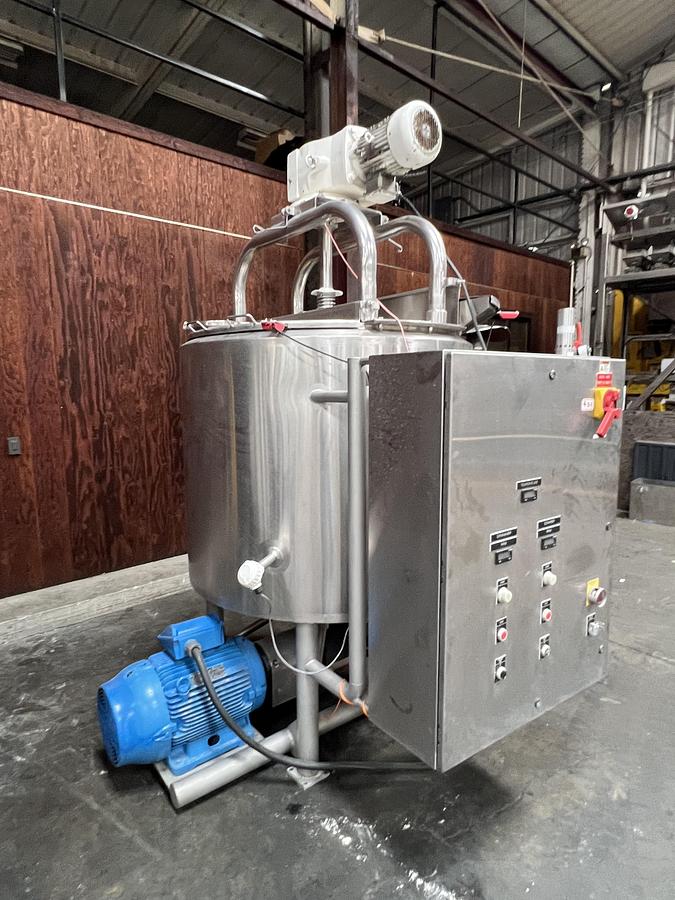

DCI 300 gallon single shell vertical Dynamixer

DCI 300 gallon single shell vertical Dynamixer
Location:Lodi, CA
Description

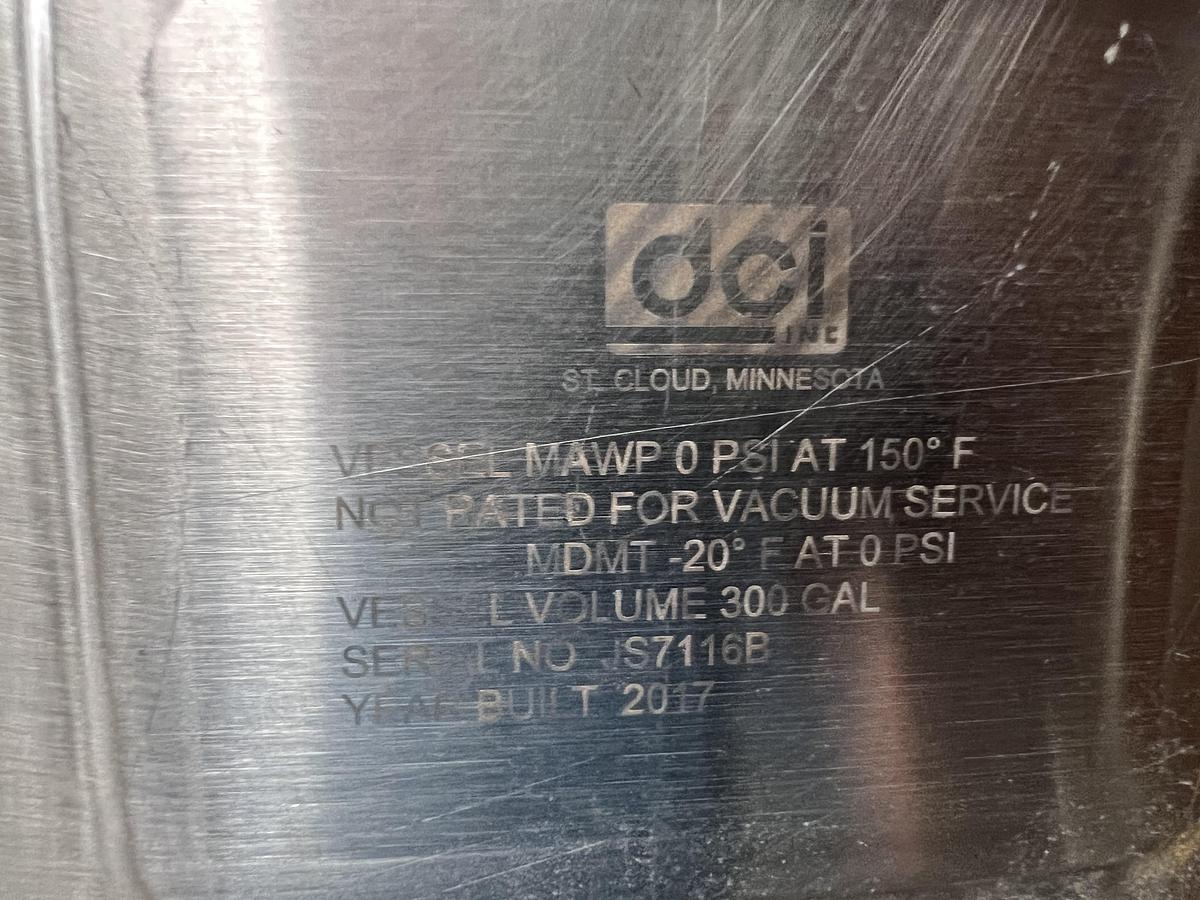

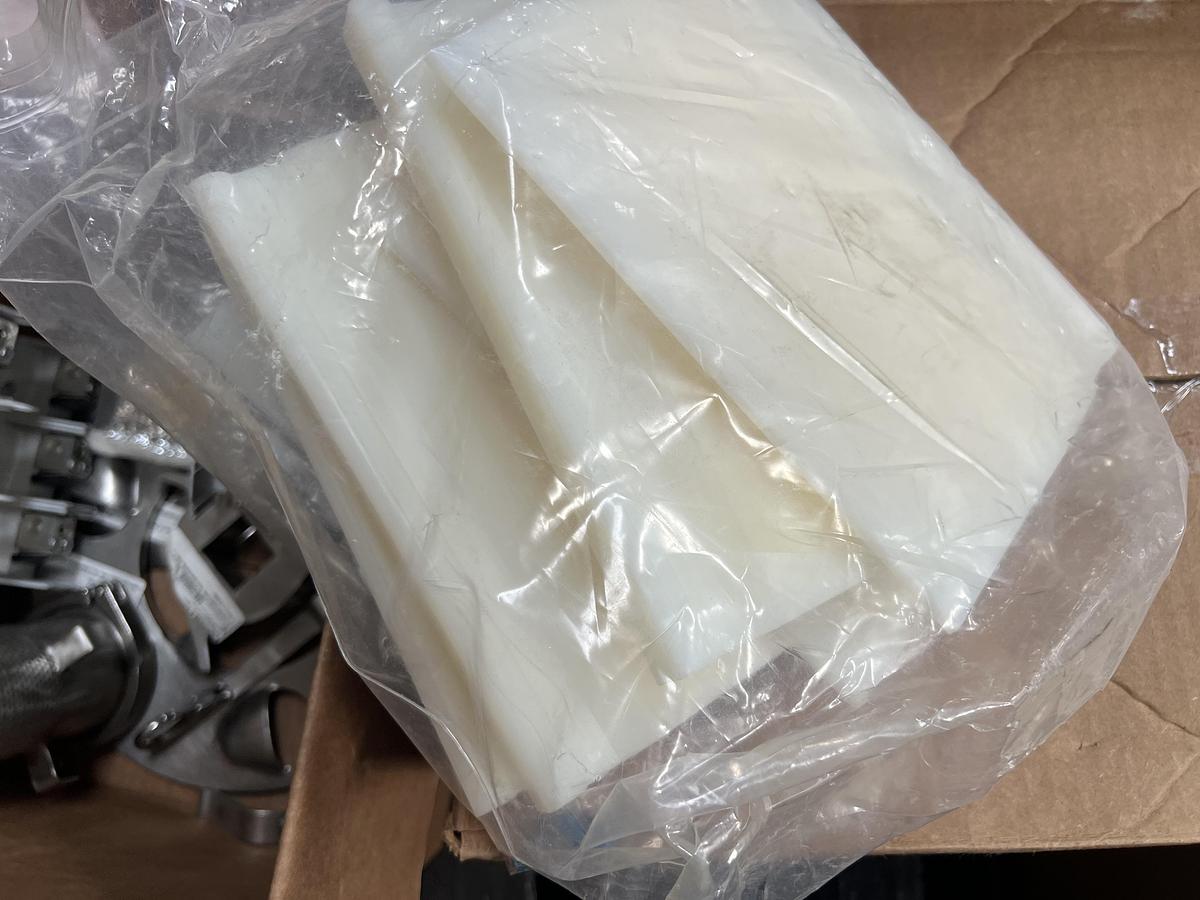

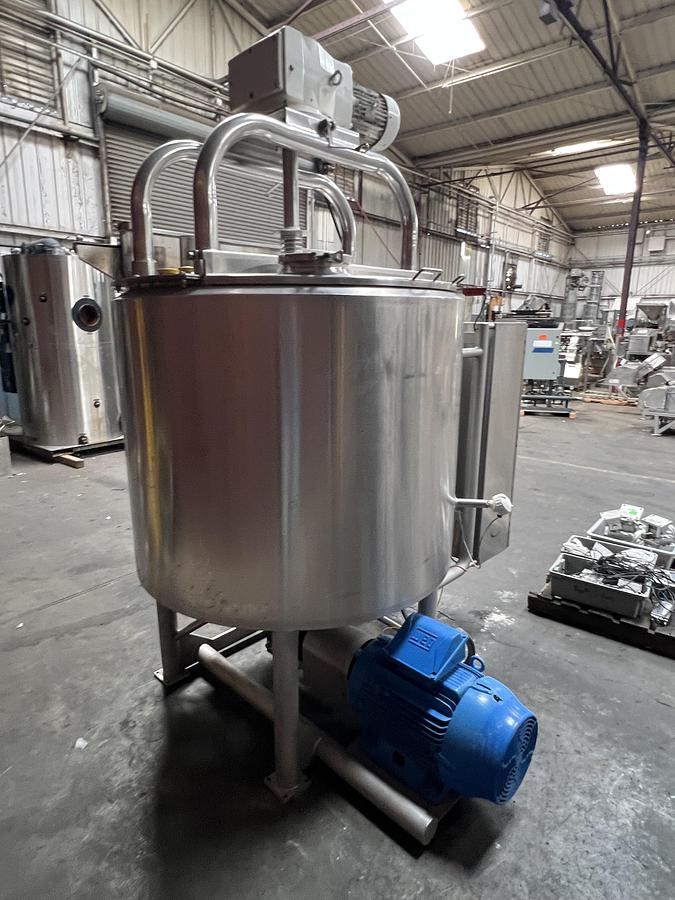

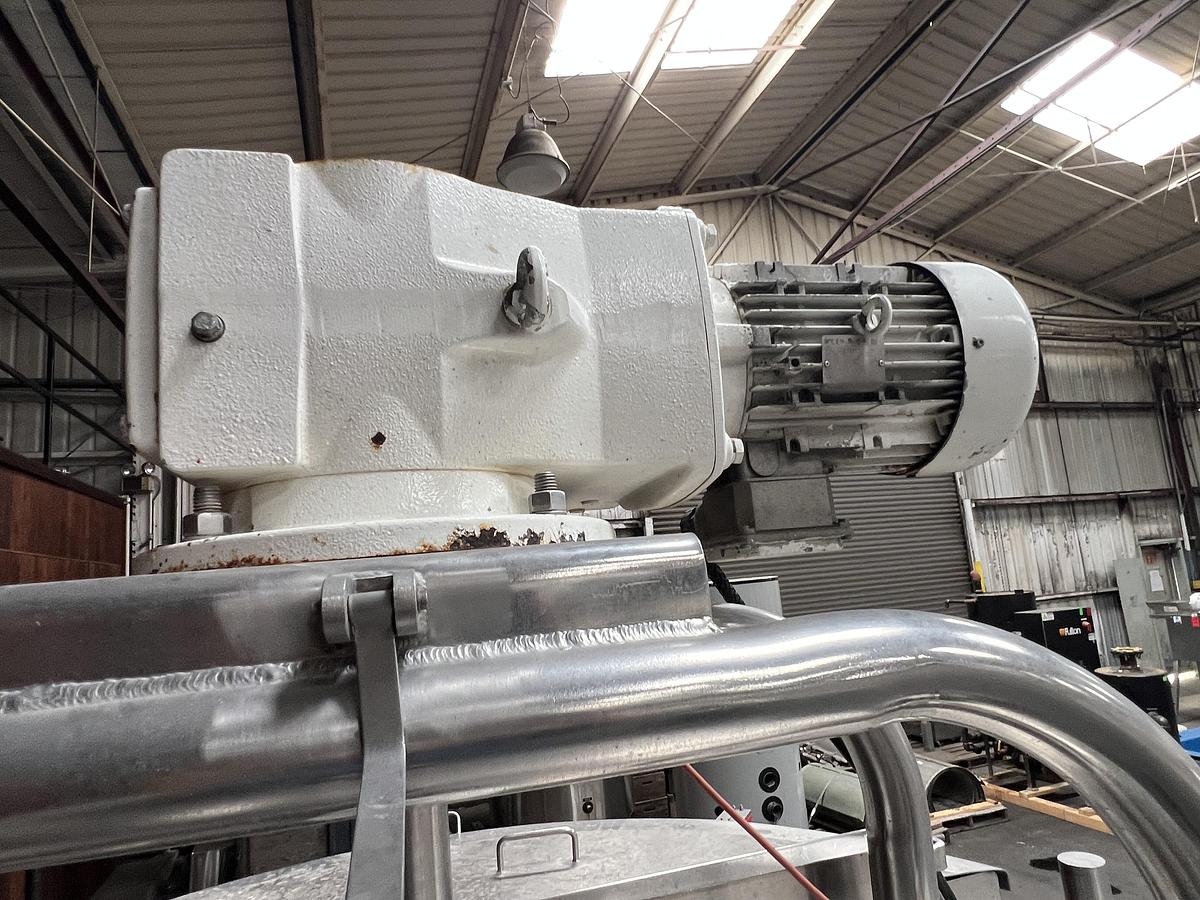

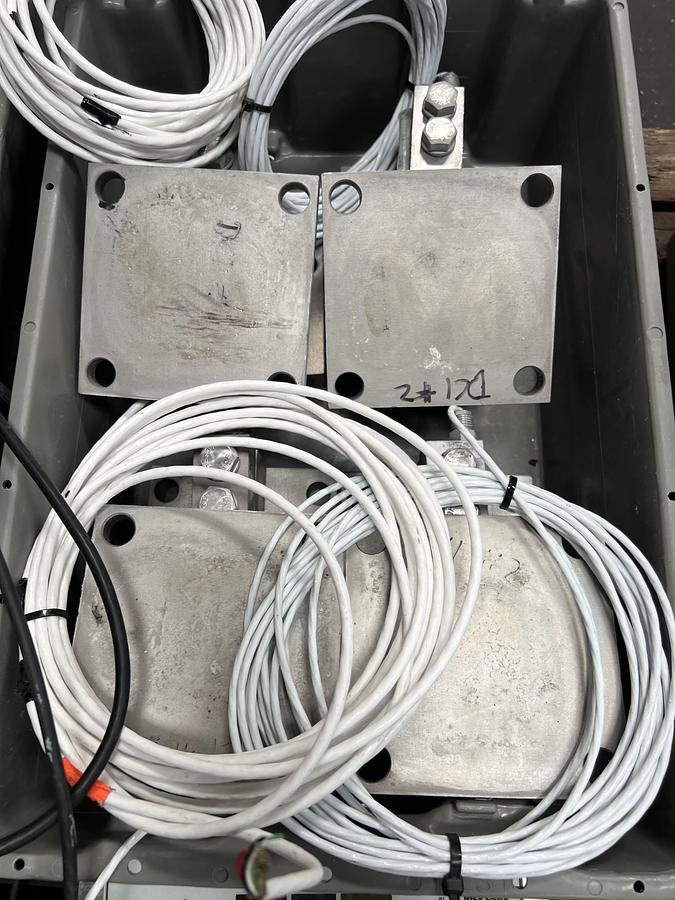

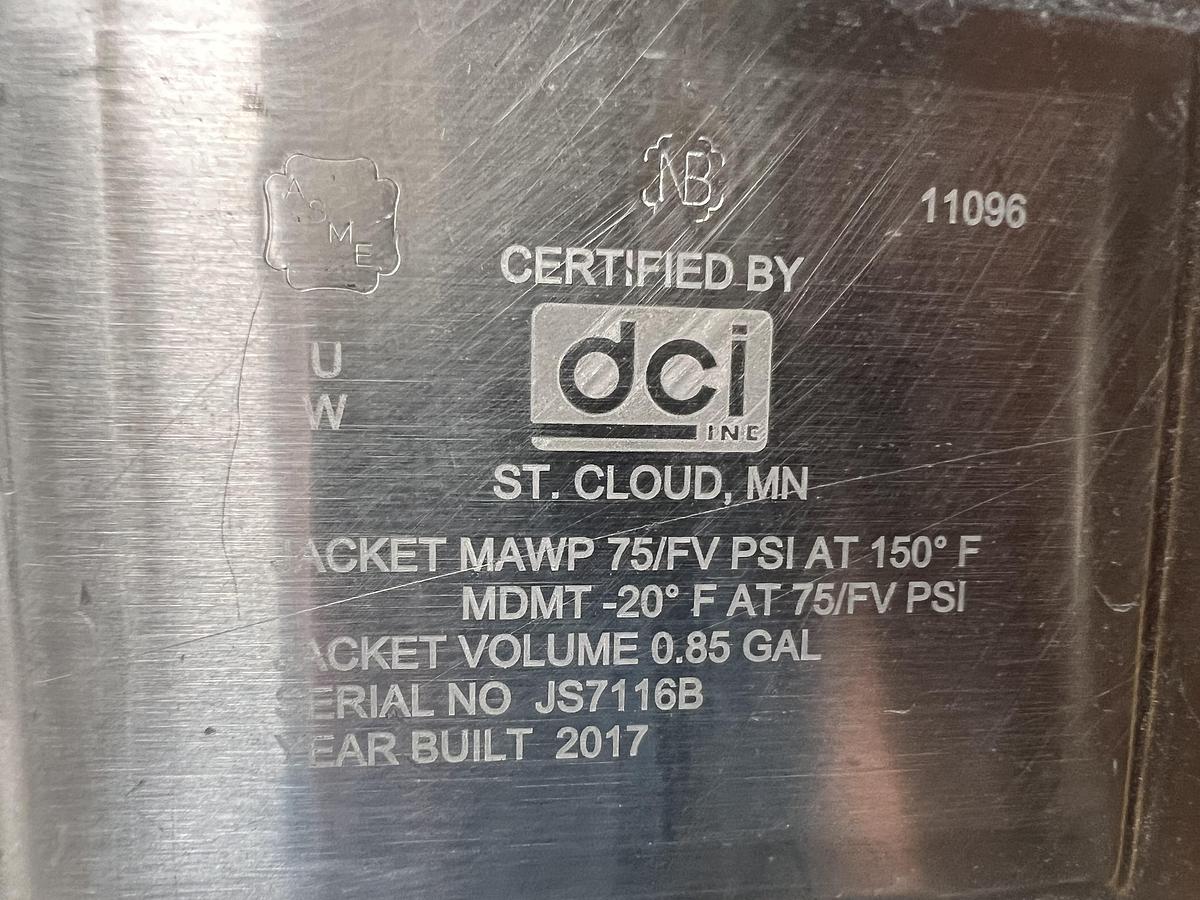

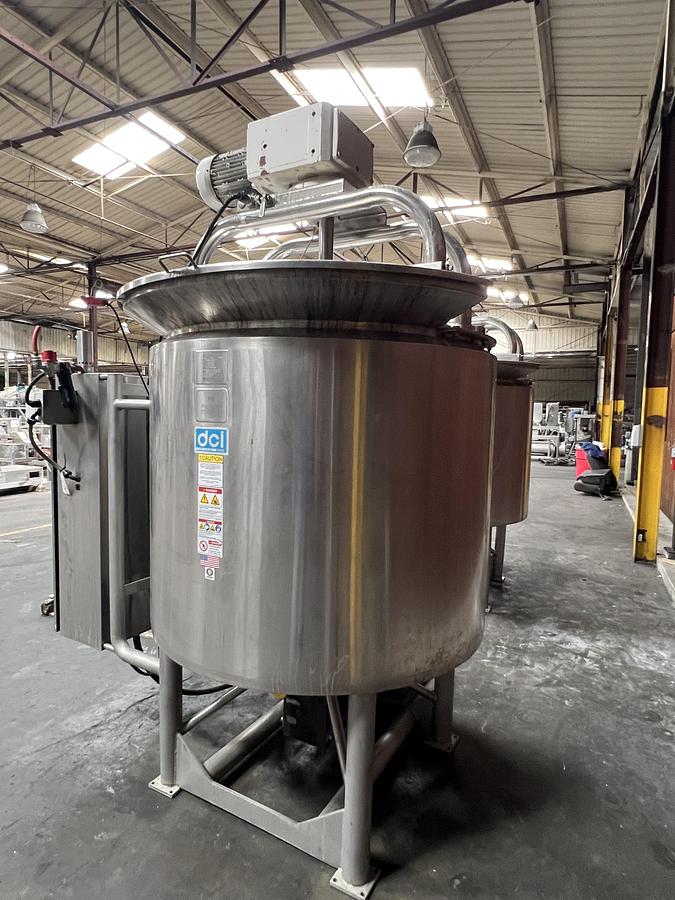

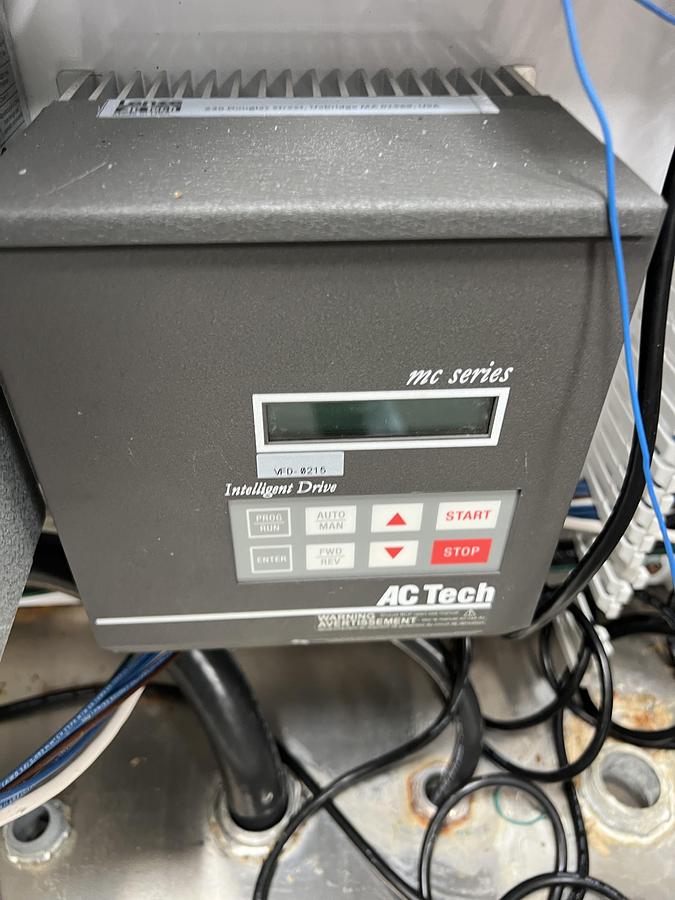

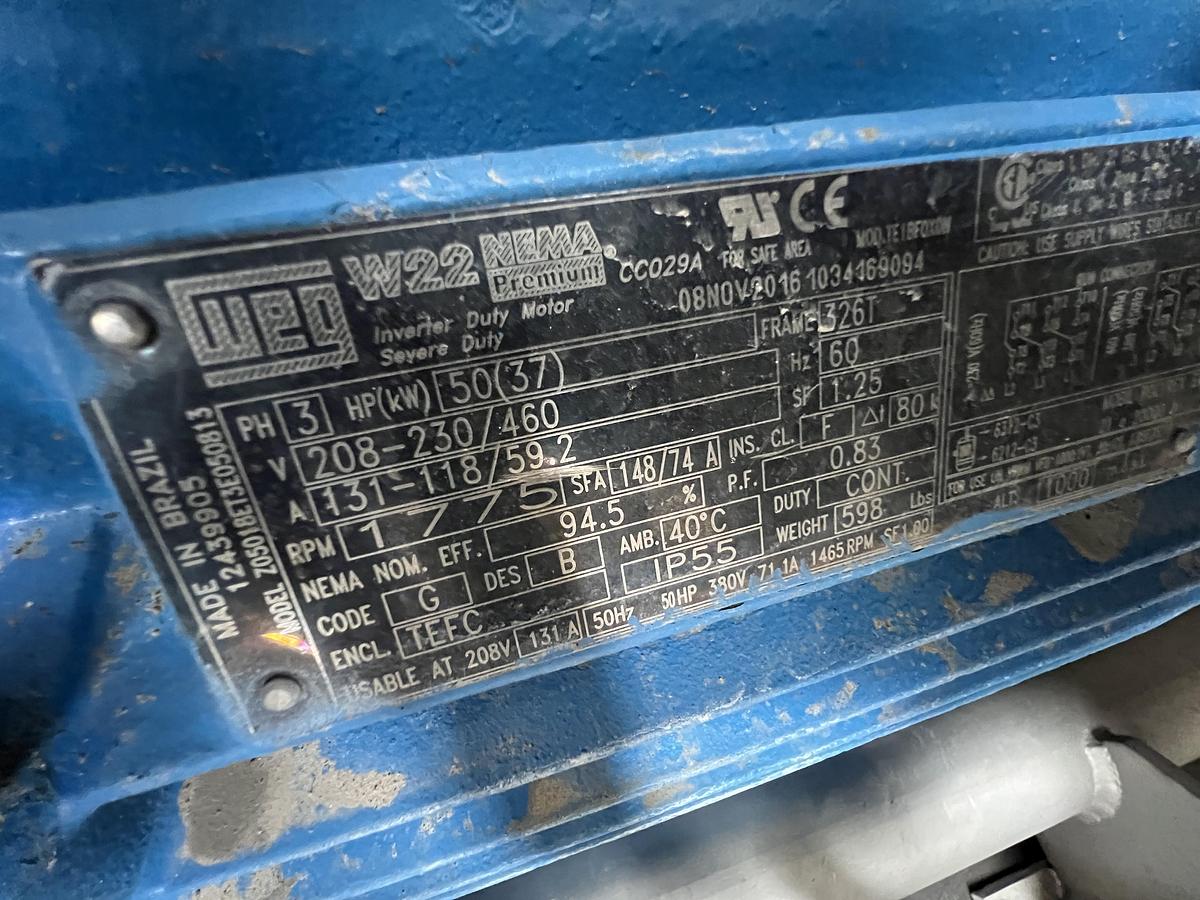

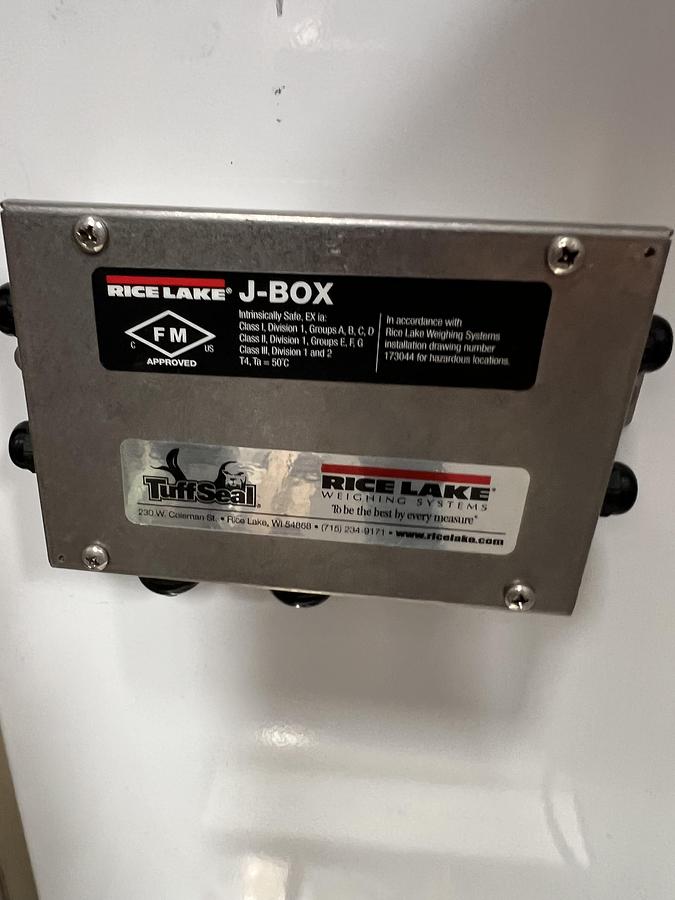

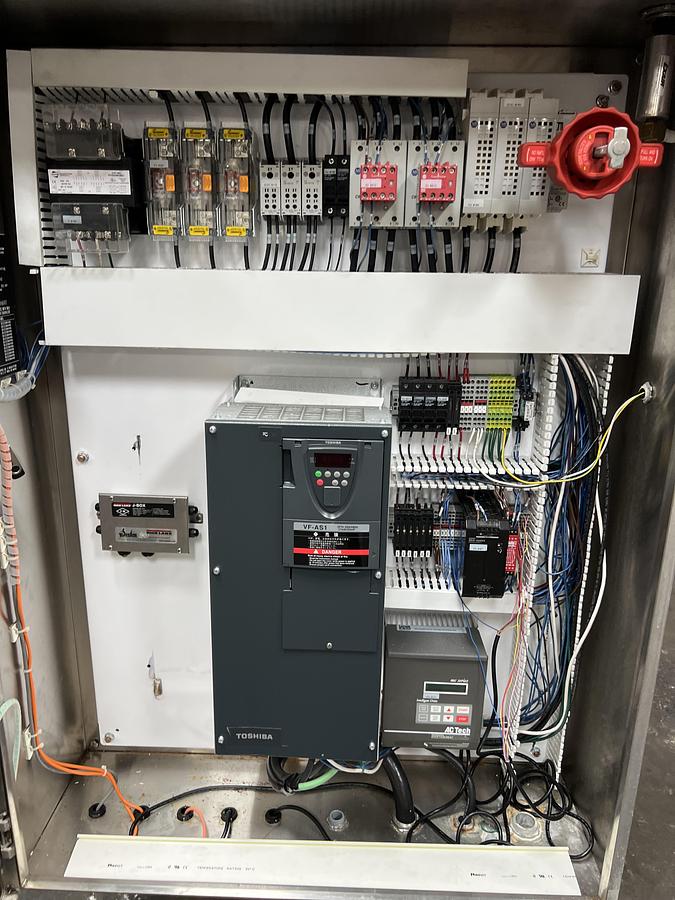

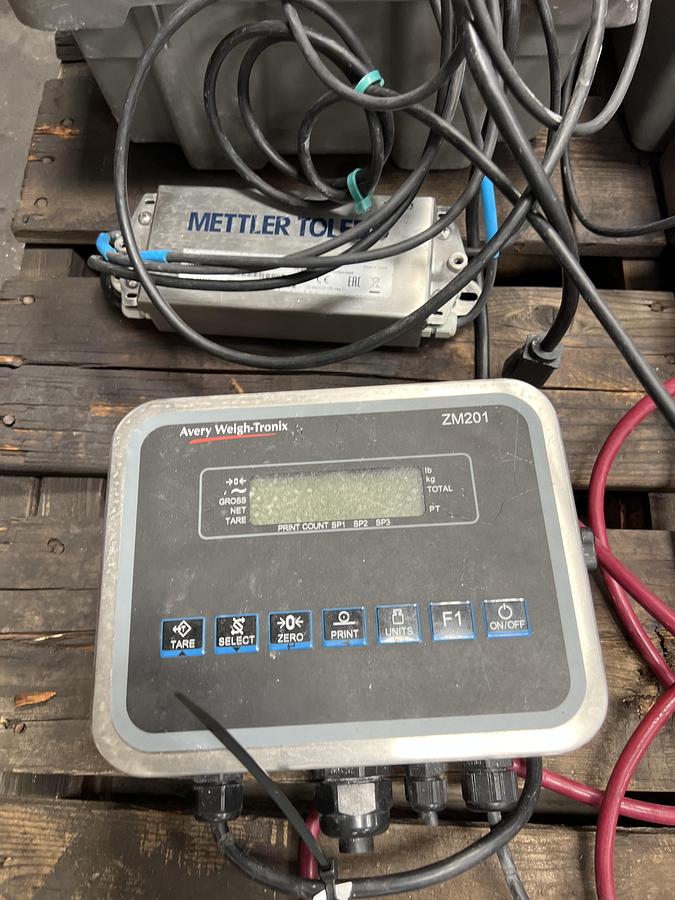

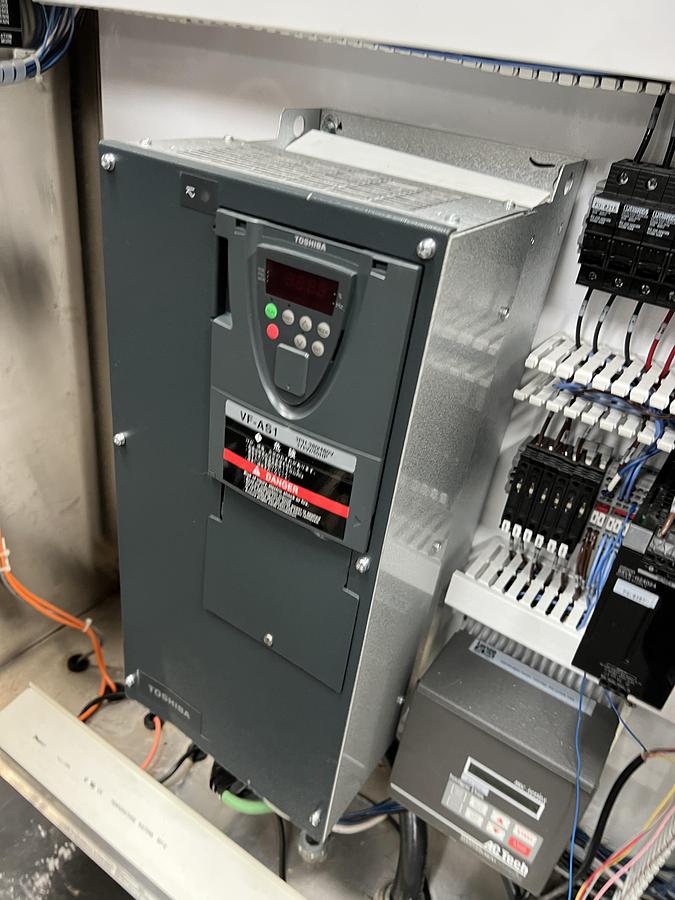

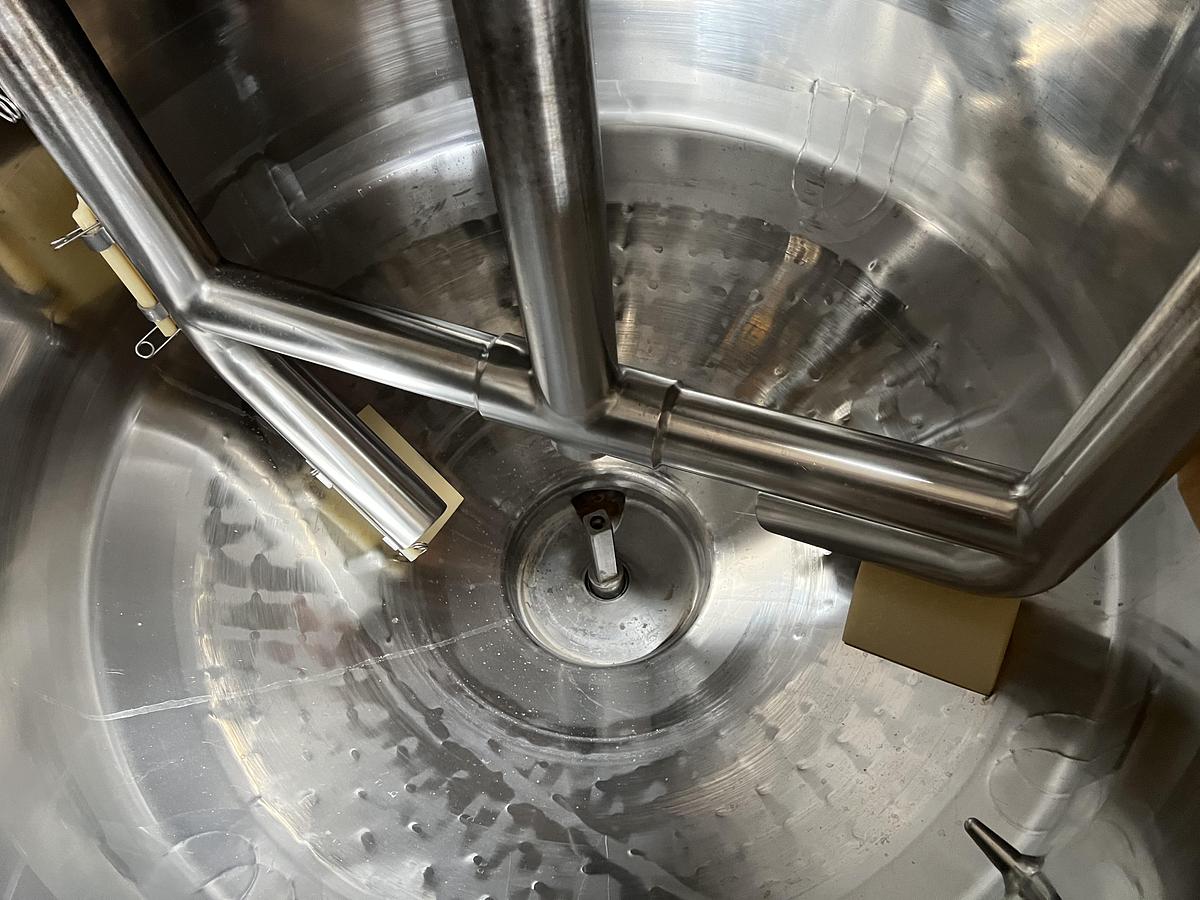

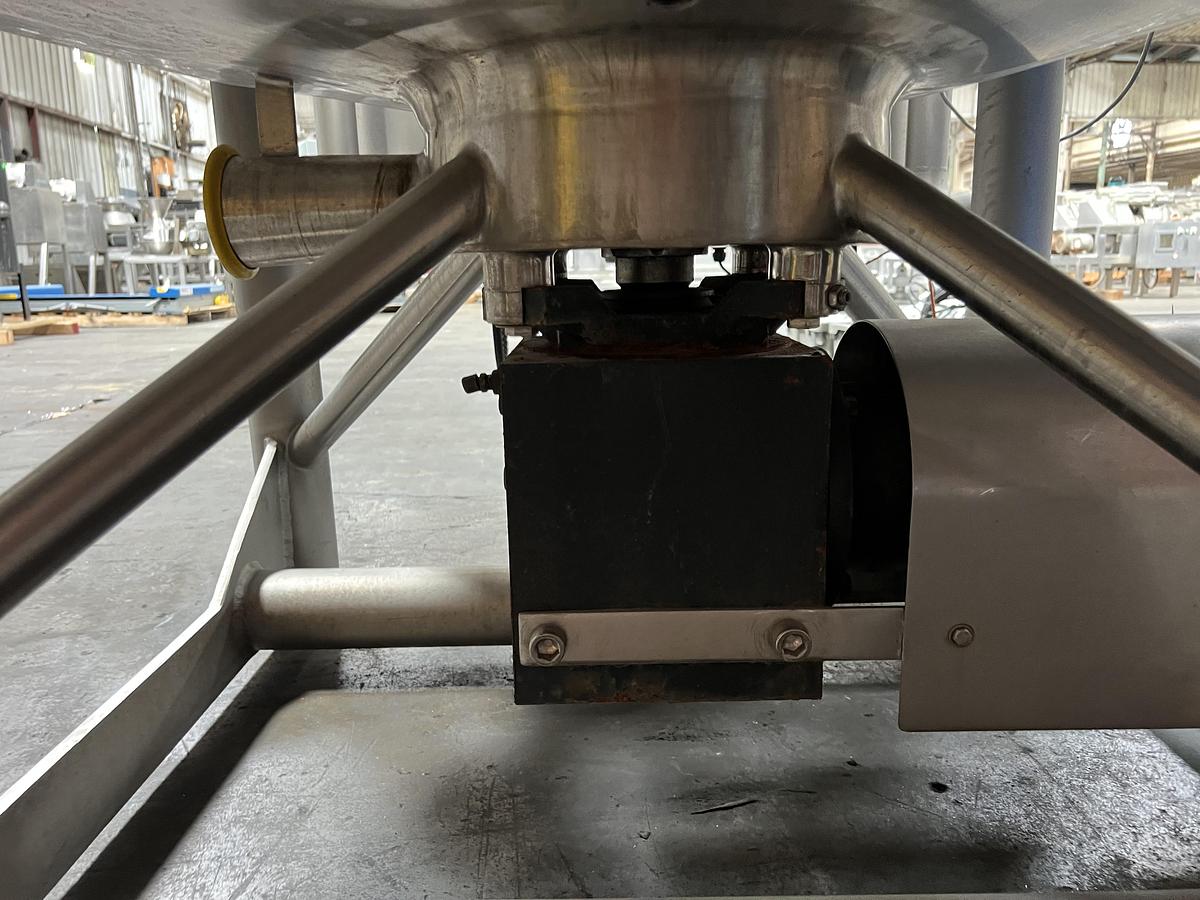

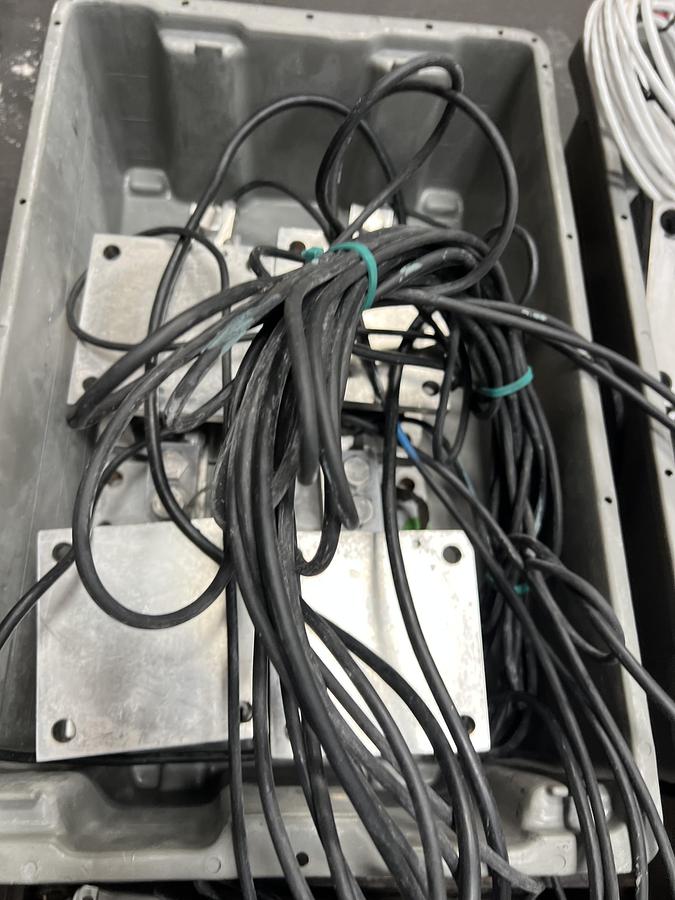

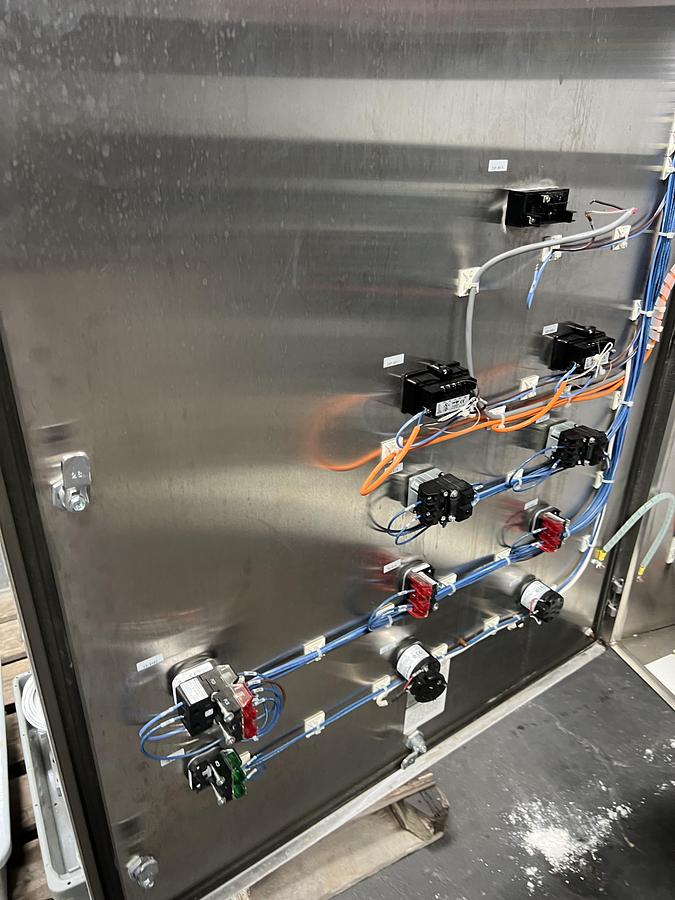

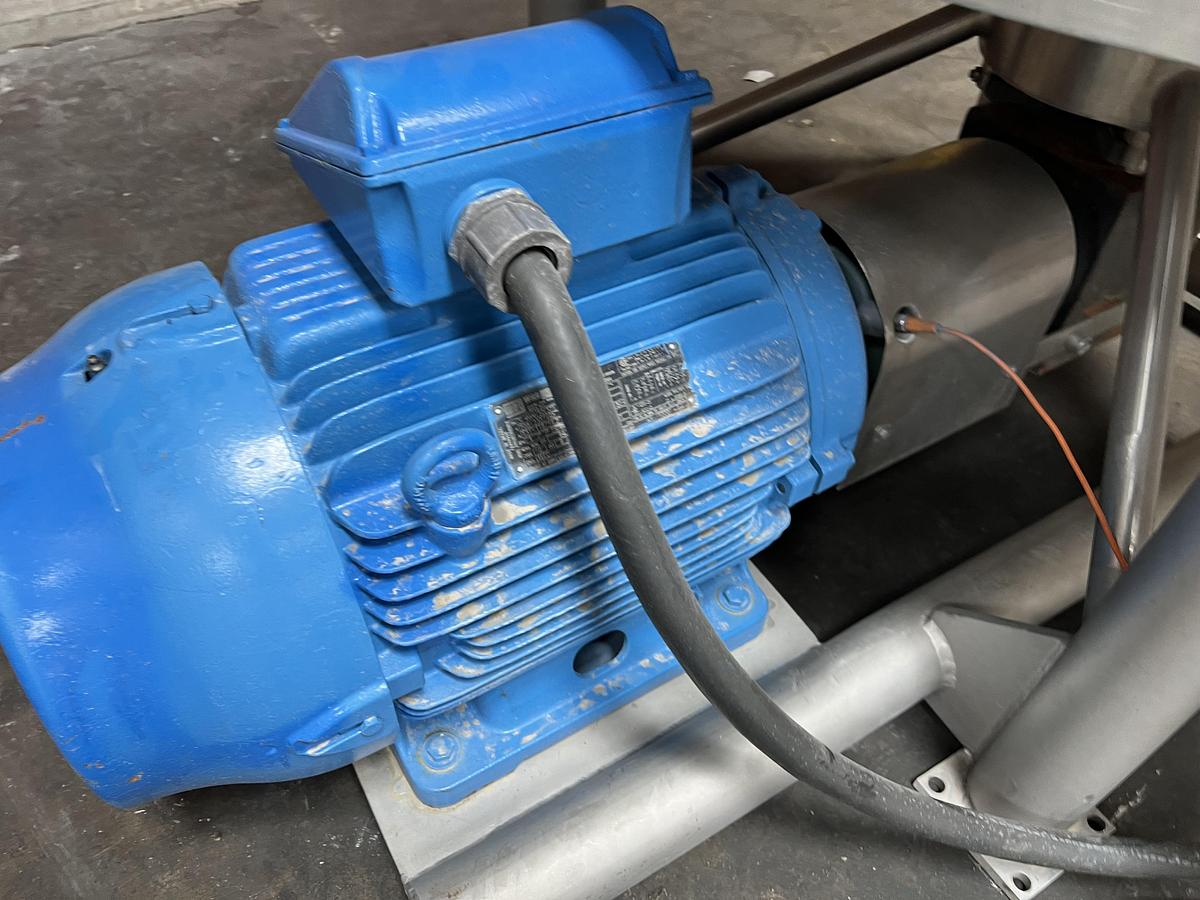

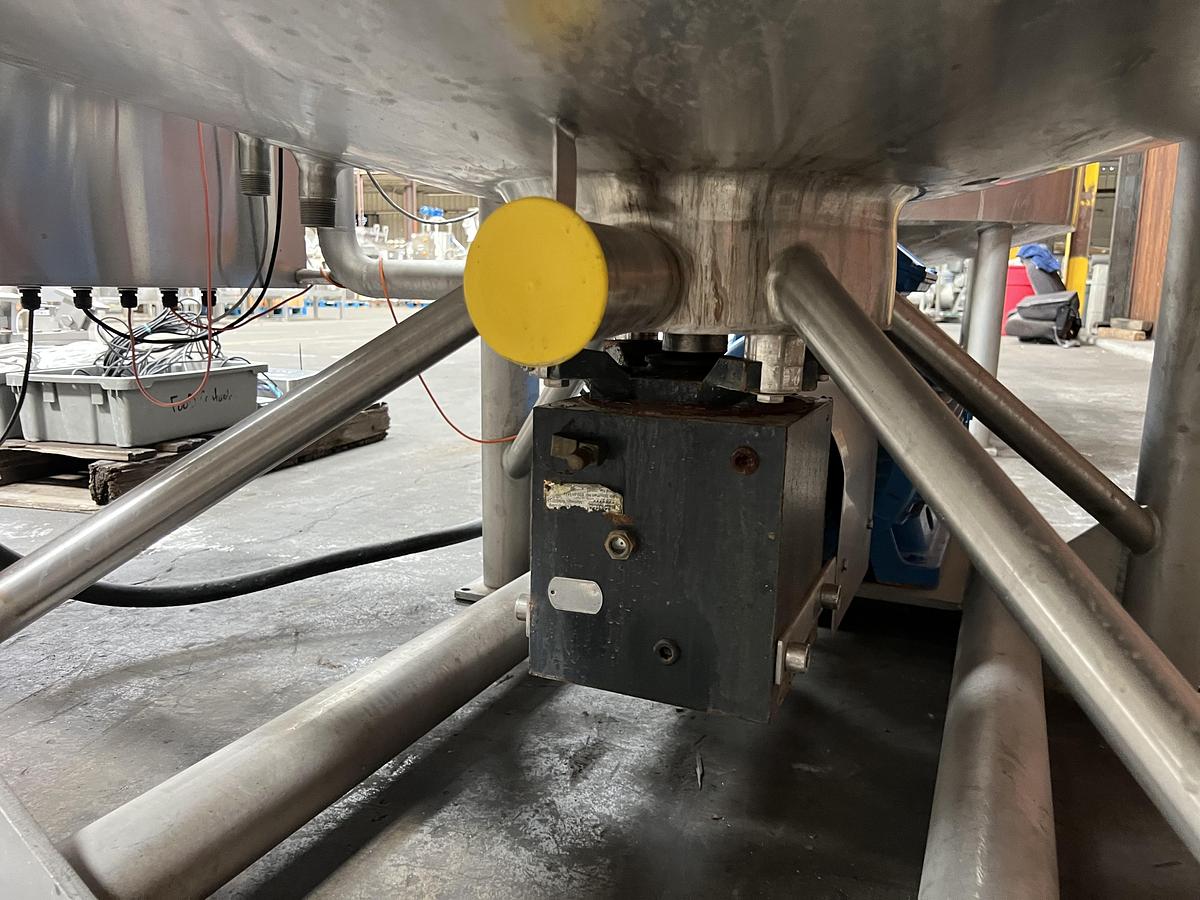

DCI 300 gallon single shell vertical Dynamixer, bottom jacketed, 49.5” inside diameter x 36” high straight wall, 316SS construction, bottom jacket rated at 75PSI, top mounted side and bottom swept surface agitation with 5hp gearhead drive motor, top hinged covers, with a bottom mounted high speed, high shear liquifying style mixing head, 1800rpm, with a single cup impeller and chopper blades, driven by a 50kw/37hp 1775rpm drive motor, 3” Tri-Clamp bottom discharge, 3” top mounted screened vent, (4) four stainless steel legs, includes one set of (4) Mettler-Toledo load cells, with a NEMA 4X stainless steel control panel AC Tech VFD’s, tank serial number JS7116B, 2017, unit includes a small compliment of spare parts, very good condition, as is. *The bottom mounted high shear impeller and cutting blade has been removed but is included with a small compliment of spare parts.
Specifications
| Manufacturer | DCI |
| Year | 2017 |
| Condition | Used |
| Serial Number | JS7116B |
| Stock Number | 9610 |
| Condition info | Very Good Condition |
Additional Features
Additional sizes, change parts, rebuilding, video test runs, and customization options are available. Discounted shipping rates for continental USA.
