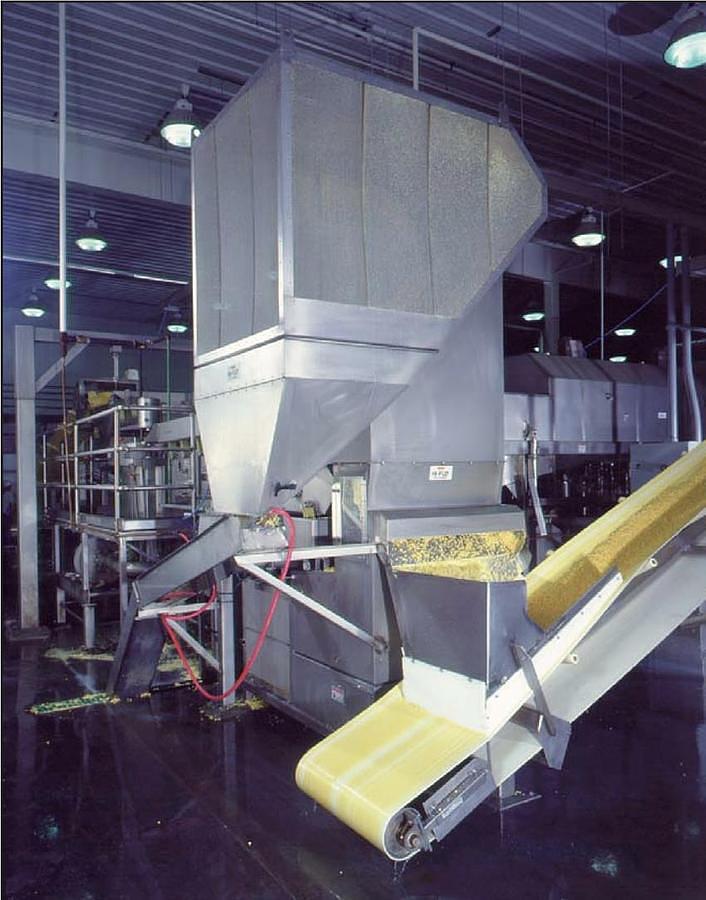

Simple and efficient, the Hi-Flo Air Cleaner separates your product from light trash. The specially engineered separation chamber and diffuser grid system produce an equally distributed air pattern that improves separation and reduces residence time and damage from unnecessary product drops. The balanced air pattern provides precise control, while higher velocity air flow along inlet and discharge openings creates negative air pressure to virtually eliminate escaping waste. Discharged product is cleaner, free of leaves, stems, chaff, or other light trash.
Common Product Applications Beans (green, wax), Blueberries, Celery, Cherries, Chestnuts, Coffee beans, Corn, Figs, Garlic, Grain, Grapes, Legumes, Lettuce, Okra, Onions, Peas (green), Plastics, Radishes, Raisins, Seafood, Strawberries, Vegetables
Other applications may be used on this equipment. Call Key to find out about how your product(s) may benefit from this technology or another system.
Benefits
- Up to 25% more energy efficient than other air cleaners
- No other air cleaner is quieter: 85 dBA average
- Compact: up to 47% less space than other air cleaners
- Simple operation: one-hand vernier-style damper control permits fine tuning for maximum separation; inspection panels allow observation of chamber as air flow is adjusted
- Versatile: extended air chamber or "drop-through" design
Capacity Range Three models, up to 27,216 kg/h at bulk density of 641 kg/m³ (60,000 lb/hr at 40 lb/ft³)
Integrated System
- All stainless steel construction
- Optional hood configurations
- Iso-Flo® infeed shaker (conveying, scalping, or dewatering) simplifies installation and reduces support needs. Lower infeed minimizes drop and handles product gently
- Durable, quiet stainless steel Iso-Drive® power plant
- Optional controls available, including inverter
Motor Specifications
Model 2X
- Shaker: 0.75 kW (1 hp), 1,800 rpm, all voltages available
- Blower: 3.7 kW (5 hp), 1,800 rpm, all voltages available
Model No. 8
- Shaker: 0.75 kW (1 hp), 1,800 rpm, all voltages available
- Blower: 7.5 kW (10 hp), 1,800 rpm, all voltages available
Model No. 16
- Shaker: 0.75 kW (1 hp), 1,800 rpm, all voltages available
- Blower: 11.2 kW (15 hp), 1,750 rpm, all voltages available
